Session 4 Lecture Notes for First Course in Java
course homepage      course calendar

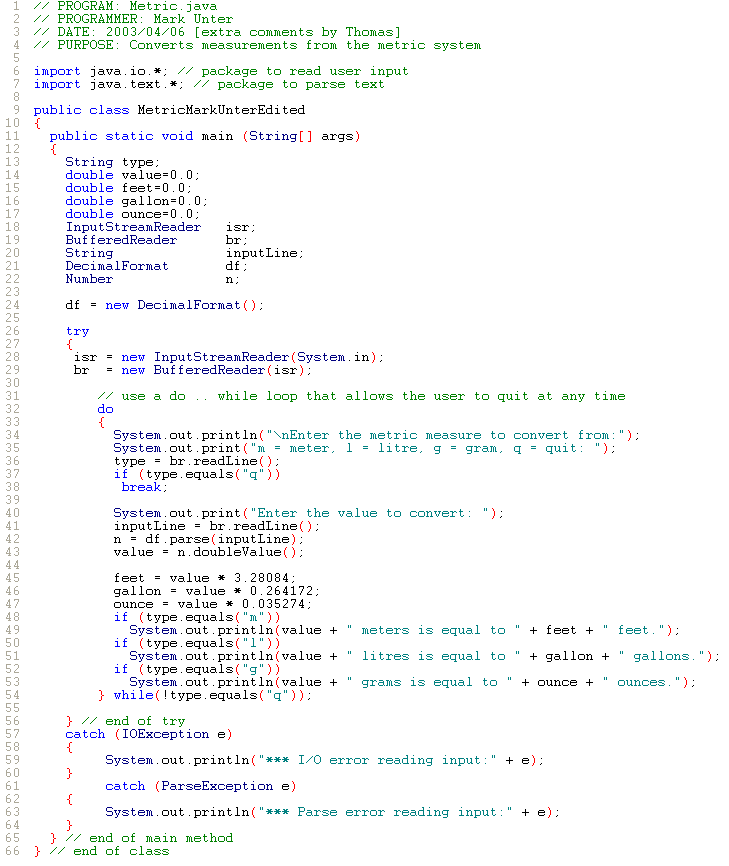

Review of Session 3 Homework

Note: Line 37 uses the equals method that all string object inherit to enable you to compare the contents of two strings:
   http://java.sun.com/j2se/1.4.1/docs/api/java/lang/String.html#equals(java.lang.Object)

Note: Line 43 uses the doubleValue method of the Number object,
   http://java.sun.com/j2se/1.4.1/docs/api/java/lang/Number.html#doubleValue()
which comes as part of the lang package: the package you do not need to import becauses it is always available to the compiler.

Let us look at the following:

• Do .. While loop
• io package
• text package
• error handling

Do .. While

The do while statement guarantees that your code executes (do) until something you specifies happens (while).
In the program above, it guarantees that the user sees choices (line 34) and can quit the program (line 54).
Unlike the for loop, the do loop has no pre-set number of iterations (and therefore do not need to initialize and increment a counter).
Indeed, the program above has a potentially infinite loop: if the user never quits, the program never stops.
A detail explanation of both do and do while  is:

http://java.sun.com/docs/books/tutorial/java/nutsandbolts/while.html

What applications can we think of for such infinite loops?

io package

http://java.sun.com/j2se/1.4.1/docs/api/java/io/package-summary.html

provides the BufferedReader class: http://java.sun.com/j2se/1.4.1/docs/api/java/io/BufferedReader.html

and the InputStreamReader class: http://java.sun.com/j2se/1.4.1/docs/api/java/io/InputStreamReader.html

Note: Line 29 "wraps" the input stream reader object, isr, in a buffered reader object, bf.

text package

http://java.sun.com/j2se/1.4.1/docs/api/java/text/package-summary.html

Note: The java.text package provides the NumberFormat class, which is abstract enough to work with numbers of any format.
For example, in some locales, commas and periods are reversed: 10.000,02 instead of 10,000.02
This is a case where Java supports polymorphism: many forms or formats.
http://java.sun.com/j2se/1.4.1/docs/api/java/text/NumberFormat.html

The text package also provides the DecimalFormat class: http://java.sun.com/j2se/1.4.1/docs/api/java/text/DecimalFormat.html,
which has the parse method:  http://java.sun.com/j2se/1.4.1/docs/api/java/text/DecimalFormat.html#parse(java.lang.String, java.text.ParsePosition)
used on line 42.

error handling

An error is an object, so we will wait until we cover objects and class in session 6, when we do cover error handling.

Operators

In the language of programming (and mathematics), we say that operators operate on operands.
In the case of sum =  cost1 + cost2  for example, the operators are the addition operator (+) and the assignment operator (=). The operands are that on which the operators operate, namely, the variables cost1, cost2, and sum.

If you write a Java statement such as:

int totalDaysInYear = 365;
The assignment operator (=) assigns the  integer value of 365 to the variable named totalDaysInYear.

Point location = new Point(4,3);
The assignment operator (=) assigns x- and y-coordinate values.
The new operator creates a new instance of a class and returns a reference to that instance.

Arithmetic Operators

Background information (not part of Java)

Numbers are represented in memory using bits. A bit is the smallest unit that a computer can work with.
A bit has two possible values, 0 or 1.
Everything in a computer is represented using different numbers of bits.
A number is represented by a series of bits which represent different powers of 2.

An 8 bit number (byte):

arithmetic operators

The arithmetic operators return a number.

numeric return value = <operand1> <operator> <operand2>;
example: myLongString = myShortString + myOtherString;

• + addition
  • adds two numbers
  • concatenates two string objects
• - subtraction
  • subtract one number from another
• * multiplication
  • multiply two numbers
• / division
  • divide two numbers
• % modulus
  • the remainder of an integer division
  • 5 % 3 = 2 Because 5/3 = 1 and leaves 2.
  • myRemainder = 5 % 3;
  • example: Suppose I have a machine that lets people input 1-cent coins and returns to them the corresponding amount of 5-cent coins. I could use modulus to determine if my machine has to give the user one-cent pieces because the user's input sum modulus five returns the number of 1-cent coins.

Example of modulus:

The output is:

4 divided by 12 = 0 with a remainder of 4, so modulus is
12 divided by 4 = 3 with no remainder, so modulus is: 0

Arithmetic operators:

• also work with the char data type (a special type of 16-bit integer that supports the Unicode representation of human languages, including Chinese).
• are binary operators because they operate with two things (two operands).

How many binary operators are there in the following application?

class Weather {
    public static void main(String[] arguments) {
        float fah = 86;
        System.out.println(fah);
        // To convert Fahrenheit into Celsius
        // Begin by subtracting 32
        fah = fah - 32;
        // Divide the answer by 9
        fah = fah / 9;
        // Multiply that answer by 5
        fah = fah * 5;
        System.out.println(fah);

        float cel = 33;
        System.out.println(cel);
        // To convert Celsius into Fahrenheit
        // Begin by multiplying it by 9
        cel = cel * 9;
        // Divide the answer by 5
        cel = cel / 5;
        // Add 32 to the answer
        cel = cel + 32;
        System.out.println(cel);
    }
}

arithmetic - unary minus operator

The unary minus operator ( - ) operates on a single operand and converts a positive value into a negative value.

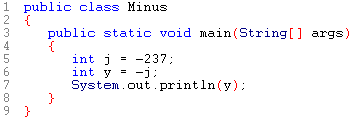

How about this case? What will be the value of y?

The println method will return the value of y that results from line t, which uses the unary minus operator on a negative operand.

other unary operators

++expr

--expr

~    bitwise unary NOT (unimportant for this course)

!    logical unary NOT

• !(false) = true;    // complement of 'false' is 'true'

• !(true)  = false;   // complement of 'true' is 'false'

I think we can say that a loop counter, such as i++, only operates on one operand.

Assignment operators

Here's some handy shortcuts:

x += y; // x = x + y

x -= y // x = x - y

x *= y; // x = x * y

x /= y; // x = x / y

Here's some more complete reference tables:

http://java.sun.com/docs/books/tutorial/java/nutsandbolts/opsummary.html#assignment



Operator	Use	Description
?:	op1 ? op2 : op3	If op1 is true, returns op2. Otherwise, returns op3. (This is the conditional operator.)
[]	type []	Declares an array of unknown length, which contains type elements.
[]	type[ op1 ]	Creates and array with op1 elements. Must be used with the new operator.
[]	op1[ op2 ]	Accesses the element at op2 index within the array op1. Indices begin at 0 and extend through the length of the array minus one.
.	op1.op2	Is a reference to the op2 member of op1.
()	op1(params)	Declares or calls the method named op1 with the specified parameters. The list of parameters can be an empty list. The list is comma-separated.
(type)	(type) op1	Casts (converts) op1 to type. An exception will be thrown if the type of op1 is incompatible with type.
new	new op1	Creates a new object or array. op1 is either a call to a constructor, or an array specification.
instanceof	op1 instanceof op2	Returns true if op1 is an instance of op2

Example of the conditional operator:

The output is:

100 is greater than 99, so max is: 100
101 is greater than 99, so max is: 101

Does the conditional operator remind you of a control statement that you already know?
Let's write the equivalent logic using keywords that depend on conditions.

Bitwise Operators

Can be useful in specialized circumstances. Not a focus of this course.

An operator that manipulates the bits of one or more operands both individually and in parallel, for example, unary one's complement operator (~), binary logical operators (&, |, ^), binary shift operators (<<, >>, >>>).

http://java.sun.com/docs/books/tutorial/java/nutsandbolts/bitwise.html

Relational Operators

Comparison operators

Logical operators test a condition by comparing values and return a boolean value (true or false).

• == equal (two adjacent equal signs)
  if (sum = = 100) { // do something ...
  WARNING: Testing for identical values with = = is different from assigning a value with =
• != not equal
  if (sum != 100) { // do something ...
• > greater than
  if (sum > 100) { // do something ...
• < less than
  if (sum < 100) { // do something ...
• >= greater than or equal to
  if (sum >= 100) { // do something ...
• <= less than or equal to
  if (sum <= 100) { // do something ...

Here's two comparison operators in a sequence:
isBigSum = sum > 100;
The variable isBigSum gets the value true only if the sum is greater than 100.

Boolean Logical Operators

• & - ampersand is the logical and operator
  boolean isAllExpensive = (cost1 >= 100) & (cost2 >= 100);
  Both cost1 and cost2 must be >= 100 to return true and both cost1 and cost2 are evaluated
• && - double ampersand is the logical and operator that can "shortcircuit" when appropriate
  boolean isAllExpensive = (cost1 >= 100) && (cost2 >= 100);
  // Both cost1 and cost2 must be >= 100 to return true and if cost1 fails the test, cost2 is NOT evaluated.

• | - the logical or operator is the "pipe" key
  boolean hasExpensive = (cost1 >= 100) | (cost2 >= 100);
  Either cost1 or cost2 must be >= 100 to return true and both cost1 and cost2 are evaluated
• || or - double "pipe" is the logical or operator that can "shortcircuit" when appropriate
  boolean isAllExpensive = (cost1 >= 100) || (cost2 >= 100);
  Either cost1 or cost2 must be >= 100 to return true and if cost1 passes the test, cost2 is NOT evaluated.

Note: Do not confuse the two forward slashes of comments (//) with the two "pipes" of one of the logical operators (||).

Truth table

Assignment Operator

variable = expression

int x, y, z;
x = y = z = 100; // yields value of right-hand expression

Operator Precedence

Multiplication occurs before addition

total = 2 + 3 * 4; // evaluates to (3 * 4) + 2, which is 14
total = (2 + 3) * 4; // evaluates to 5 * 4, which is 20

Fortunately, whatever you put in parenthesis has precedence over what is not in parenthesis.

http://java.sun.com/docs/books/tutorial/java/nutsandbolts/expressions.html
The Java programming language allows you to construct compound expressions and statements from various smaller expressions as long as the data types required by one part of the expression matches the data types of the other. Here's an example of a compound expression:

x * y * z

In this particular example, the order in which the expression is evaluated is unimportant because the results of multiplication is independent of order--the outcome is always the same no matter what order you apply the multiplications. However, this is not true of all expressions. For example, the following expression gives different results depending on whether you perform the addition or the division operation first:

x + y / 100     //ambiguous

You can specify exactly how you want an expression to be evaluated by using balanced parentheses ( and ). For example to make the previous expression unambiguous, you could write:

(x + y)/ 100    //unambiguous, recommended

If you don't explicitly indicate the order in which you want the operations in a compound expression to be performed, the order is determined by the precedence assigned to the operators in use within the expression. Operators with a higher precedence get evaluated first. For example, the division operator has a higher precedence than does the addition operator. Thus, the two following statements are equivalent:

x + y / 100
x + (y / 100) //unambiguous, recommended

When writing compound expressions, you should be explicit and indicate with parentheses which operators should be evaluated first. This will make your code easier to read and to maintain.

The following table shows the precedence assigned to the operators. The operators in this table are listed in precedence order: the higher in the table an operator appears, the higher its precedence. Operators with higher precedence are evaluated before operators with a relatively lower precedence. Operators on the same line have equal precedence.

postfix operators	[] . (params) expr++ expr--
unary operators	++expr --expr +expr -expr ~ !
creation or cast	new (type)expr
multiplicative	* / %
additive	+ -
shift	<< >> >>>
relational	< > <= >= instanceof
equality	== !=
bitwise AND	&
bitwise exclusive OR	^
bitwise inclusive OR	|
logical AND	&&
logical OR	||
conditional	? :
assignment	= += -= *= /= %= &= ^= |= <<= >>= >>>=

When operators of equal precedence appear in the same expression, a rule must govern which is evaluated first. All binary operators except for the assignment operators are evaluated in left-to-right order. Assignment operators are evaluated right to left.

Using Parenthesis

the two following statements are equivalent:

x + y / 100
x + (y / 100) //unambiguous, recommended

When writing compound expressions, you should be explicit and indicate with parentheses which operators should be evaluated first. This will make your code easier to read and to maintain.

Incrementing and Decrementing

These short cut unary operators increment or decrement a number by one.

Operator	Use	Description
++	op++	Increments op by 1; evaluates to the value of op before it was incremented
++	++op	Increments op by 1; evaluates to the value of op after it was incremented
--	op--	Decrements op by 1; evaluates to the value of op before it was decremented
--	--op	Decrements op by 1; evaluates to the value of op after it was decremented

Note the difference between prefix versus post-fix.

String Arithmetic

System.out.println(fah + " degrees Fahrenheit is ...");
System.out.println(fah + " degrees Celsius\n");
System.out.println(cel + " degrees Celsius is ...");
System.out.println(cel + " degrees Fahrenheit");

Quiz

1. The + operator assigns a positive value to an integer. True or False?

2. Parentheses indicate that the left side of the assignment operator has precedence. True or False?

3. A boolean operator always returns the highest possible value. True or False?

4. Because addition is simpler than multiplication, addition operations occur before multiplication operations. True or False?

5. What is the name of the % operator?

6. What does the % operator do?

7. A JVM uses ones and zeros to represent values, therefore all Java operators are binary operators.

8. What is the difference between the && and the & operator?

9. What is the difference between the || and the | operator?

10. What is the advantage or usefulness of the && and || operators compared to their & and | counterparts?
    What kind of application would take advantage of && and || ?

11. Rewrite this code: x++;

12. Rewrite this code: e +=  m;

13. Write the order of precedence in this expression: a + b * c = e / f = g-- ;

Homework Assignment

[NOT REQUIRED: EXTRA CREDIT: Write a program that calculates how many of which coins to return as change.
Post a price, allow the user to input the amount of money, and say how much of which coins come back.]

______________
